Key Parts & Features of MASPOWER Vertical Rolling Grow Rack

Vertical farming grow rack is widely used in greenhouse and indoor farming.

It can significantly boost the production efficiency by saving lots of growing space and equipped with grow lights / nets. In-Rack AirFlow System for CO2 transportation also available.

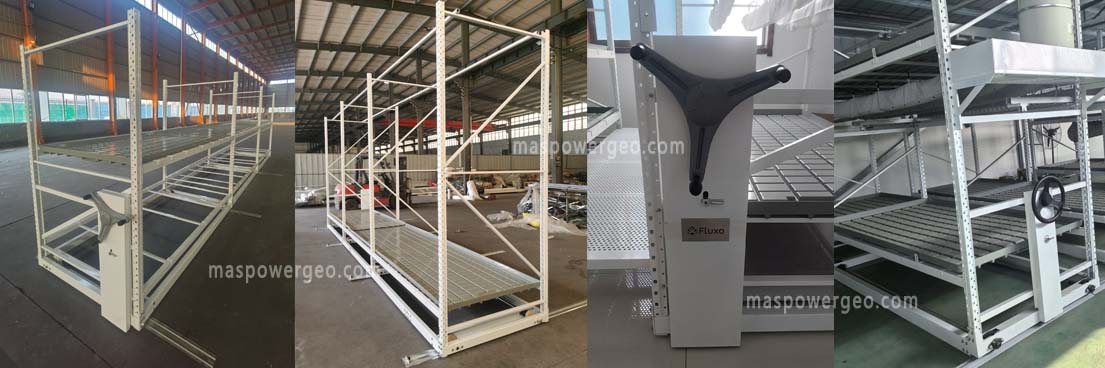

The key feature of the appearance is that the racks are with hand-crank, tracks on the ground and Upright LED Trellis. Some clients make it single tier ,some 2 tiers.

the Fluxo rack is produced by us

Here are the Key parts making up the rack :

1.Stand column: 65x50x1.5mm

2. Transverse beam & cant beam of stand column: 20x40mm

3. Longitudinal beam: 40x60mm

3.Transverse beam: 20x30mm

4. C-shape longitudinal beam of chassis : 90x50x50mm

5.C-shape transverse beam of chassis :

85x50x50mm and reinforced transverse beam included

6. Load-bearing wheel: Nylon 130mm diameter

7. Transmission shaft : 25mm diameter stainless steel tube

8. Track: Hot-dip galvanized carbon steel

9. 3mm sheet thick ABS Flood tray

10. 2 pcs square LED pole on top : 30x30mm

11. Load-bearing capacity each tier :abut 80kgs per m2

12. Anti-static spraying for rack surface

In Rack AirFlow System available

MASPOWER Grow rack is with both excellent quality and amazing prices. Welcome to contact us.
