Geomembrane by Thickness

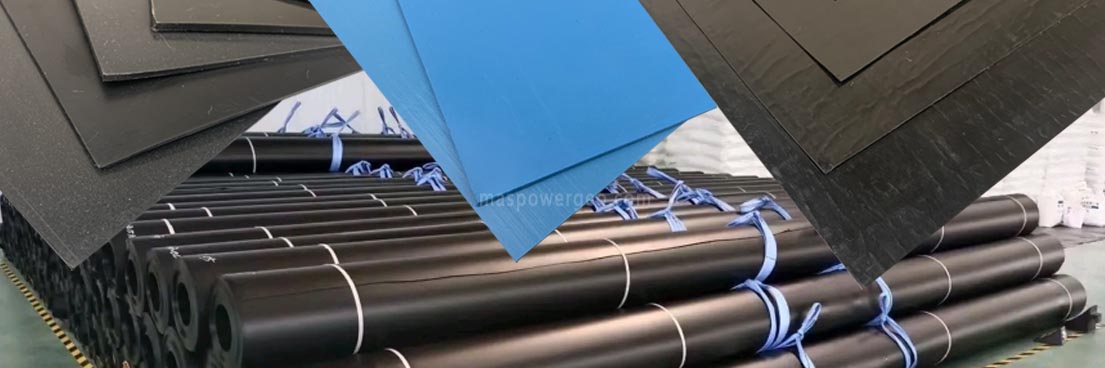

HDPE Geomembrane by Thickness

HDPE geomembrane liner is most popular type . With outstanding impermeability , remarkable toughness and amazing resistance to acid alkali ,It’s widely used on applications like Aquaculture , Angriculture , Environmental Protection , Water Conservancy Engineering , Landscaping , Municipal Engineering and Petrochemical Industry.
Different uses require different geomembrane thicknesses . Here we manufacture all kinds of thicknesses from 0.2mm up to 3mm, AKA , 8mils to 120 mils. All can meet GB , ASTM GM13 GM17 standard.

Various Thicknesses for Corresponding Applications

Different uses require different thickness . For fish pond , 0.5mm liner is enough , however , it requires 2mm thick for projects, like landfill , tailings etc. All depends on the specific environmental condition and anti-seepage requirements. For landfill , hazardous waste workshop , tailings, biogas digester , it requires 100% no leakage or the leachate would pollute our soils and underground water , which causes serious damage to our ecosystem and healthy.
Here are some common applications of geomembrane liner and their corresponding thicknesses:

Thickness by Micons	300	500	750	1000	1140	1250	1500	2000	2500	3000
Thickness by MM	0.3 mm	0.5 mm	0.75 mm	1 mm	1.14 mm	1.25 mm	1.5 mm	2 mm	2.5 mm	3 mm
Thickness by Mils	8 mils	20 mils	30 mils	40 mils	45 mils	50 mils	60 mils	80 mils	10 mils	120 mils
Corresponding Applications	fish pond lotus root pond	fish pond shrimp pond fish tank Irrigation pond		landfill reservoir landscaping lake	landfill biogas digester	landfill biogas digester	landfill biogas digester mining Oilfield tank bottom hazardous waste workshop dam large reservior	mining /tailings oilfield tank bottom hazardous waste workshop dam	mining tailings oilfield tank bottom hazardous waste workshop petrochemical base (few clients choose them due to Higher price liner)

In a word, the thicker , the better , the longer lifespan. But there is budgets limit for every projects , we have to spend our money wisely on the projects : Neither thinner nor Thicker liner ,just the suitable liner !

Excellent Quality Makes Sure Long Lifespan for your Projects

We not only have HDPE geomembrane with various thicknesses, but the quality is also fantastic.
HDPE geomembrane is with strong tensile strengh ≥ 25 MPa and very low impermeability coefficient ≤ 10⁻¹² cm/s. HDPE liner also exhibit remarkable resistance to strong acids, alkali , oils environment and temperature ranging from -70°C and to 70°C. The lifespan is over 50 years. They can meet GB , ASTM GM13 ,GM17 standard.

Technical Specification of Geomembrane Liner

Maspower Smooth HDPE Geomembrane Technical Data (GRI-GM 13 - 2021)
	Properties		Test Method	Test Value										Test Frequency
Mechanical Properties	Thickness	mm	ASTMD5199	0.2	0.3	0.5	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Per roll
	Density	g/cc	ASTMD1505/D792	0.94										90,000 kg
	Tensile Properties (1) (min. ave.) · yield strength · break strength · yield elongation · break elongation	kN/m kN/m % %	ASTMD 6693 Type IV	3 5 12 700	5 8 12 700	7 13 12 700	11 20 12 700	15 27 12 700	18 33 12 700	22 40 12 700	29 53 12 700	37 67 12 700	44 80 12 700	9,000 kg
	Tear Resistance	N	ASTM D 1004	25	38	62	93	125	156	187	249	311	374	20,000 kg
	Puncture Resistance	N	ASTM D 4833	64	96	160	240	320	400	480	640	800	960	20,000 kg
	Stress Crack Resistance (2)	hr.	ASTM D 5397	500 hr.										per GRI GM-10
	Carbon Black Content	%	ASTM D 4218 (3)	2.0-3.0%										9,000 kg
	Carbon Black Dispersion		ASTM D 5596	note (4)										20,000 kg
Reference Properties	Oxidative Induction Time(OTI) (5) (a) Standard OIT or (b) High Pressure OIT	min	ASTM D 8117 ASTM D 5885	100 min. 400 min.										90,000 kg
	Oven Aging at 85°C retained after 90 days (6) (a) Standard OIT - % or (b) High Pressure OIT - %	%	ASTM D 5721 ASTM D 8117 ASTM D 5885	55% 80%										per each formulation
	UV Resistance (7) (a) Standard OIT - % (min. ave.) or (b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9)	%	ASTM D 7238 ASTM D 8117 ASTM D 5885	N.R.(8) 50%										per each formulation
(1) Machine direction (MD) and cross machine direction (XMD) average values should be on the basis of 5 test specimens each direction Yield elongation is calculated using a gage length of 33 mm Break elongation is calculated using a gage length of 50 mm (2) The yield stress used to calculate the applied load for the SP-NCTL test should be the manufacturer’s mean value via MQC testing. (3) Other methods such as D 1603 (tube furnace) or D 6370 (TGA) are acceptable if an appropriate correlation to D 4218 (muffle furnace) can be established. (4) Carbon black dispersion (only near spherical agglomerates) for 10 different views: 9 in Categories 1 or 2 and 1 in Category 3 (5) The manufacturer has the option to select either one of the OIT methods listed to evaluate the antioxidant content in the geomembrane. (6) It is also recommended to evaluate samples at 30 and 60 days to compare with the 90 day response. (7) The condition of the test should be 20 hr. UV cycle at 75C followed by 4 hr. condensation at 60C. (8) Not recommended since the high temperature of the Std-OIT test produces an unrealistic result for some of the antioxidants in the UV exposed samples. (9) UV resistance is based on percent retained value regardless of the original HP-OIT value.

Maspower Smooth LLDPE Geomembrane Technical Data (GRI-GM 17 - 2021)
Properties			Test Method	Test Value								Test Frequency
Mechanical Properties	Thickness	mm	ASTMD5199	0.5	0.75	1.00	1.25	1.50	2.00	2.50	3.00	Per roll
	Density	g/cc	ASTMD1505/D792	0.939								90,000 kg
	Tensile Properties (1) · break strength · break elongation	N/mm %	ASTMD 6693 Type IV	13 800	20 800	27 800	33 800	40 800	53 800	66 800	80 800	9,000 kg
	2% Modulus (max)	N/mm	ASTM D5323	210	315	420	520	630	840	1050	1260	Per Fomulation
	Tear Resistance	N	ASTM D 1004	50	70	100	120	150	200	250	300	20,000 kg
	Puncture Resistance	N	ASTM D 4833	120	190	250	310	370	500	620	750	20,000 kg
	Axi-symmertric Break Resistance strain	%	ASTM D5617	30								Per Fomulation
Reference Properties	Carbon Black Content	%	ASTM D 4218 (3)	2.0 - 3.0								20,000 kg
	Carbon Black Dispersion		ASTM D 5596	note (3)								20,000 kg
	Oxidative Induction Time(OIT) (4) (c) Standard OIT or (d) High Pressure OIT	min	ASTM D 8117 ASTM D 5885	100 400								90,000 kg
	Oven Aging at 85°C retained after 90 days (5) (a) Standard OIT - % or (b) High Pressure OIT - %	%	ASTM D 5721 ASTM D 8117 ASTM D 5885	35 60								per each formulation
	UV Resistance (6) (a) Standard OIT - % (min. ave.) % retained after 1600 hrs or (b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (8)	%	ASTM D 7238 ASTM D 8117 ASTM D 5885	N.R(7) 35								per each formulation
(1) Machine direction (MD) and cross machine direction (XMD) average values should be on the basis of 5 test specimens each direction. • Break elongation is calculated using a gage length of 50 mm at 50 mm/min. (2) Other methods such as D 1603 (tube furnace) or D 6370 (TGA) are acceptable if an appropriate correlation to D 4218 (muffle furnace) can be established. (3) Carbon black dispersion (only near spherical agglomerates) for 10 different views: • 9 in Categories 1 or 2 and 1 in Category 3 (4) The manufacturer has the option to select either one of the OIT methods listed to evaluate the antioxidant content in the geomembrane. (5) It is also recommended to evaluate samples at 30 and 60 days to compare with the 90 day response. (6) The condition of the test should be 20 hr. UV cycle at 75C followed by 4 hr. condensation at 60C. (7) Not recommended since the high temperature of the Std-OIT test produces an unrealistic result for some of the antioxidants in the UV exposed samples. (8) UV resistance is based on percent retained value regardless of the original HP-OIT value.
